Nilight 5 Pcs Waterproof 40/30 A Heavy Duty 12 AWG Tinned Copper Wires 5 Pin SPDT 12V Automotive Relay and Harness Set

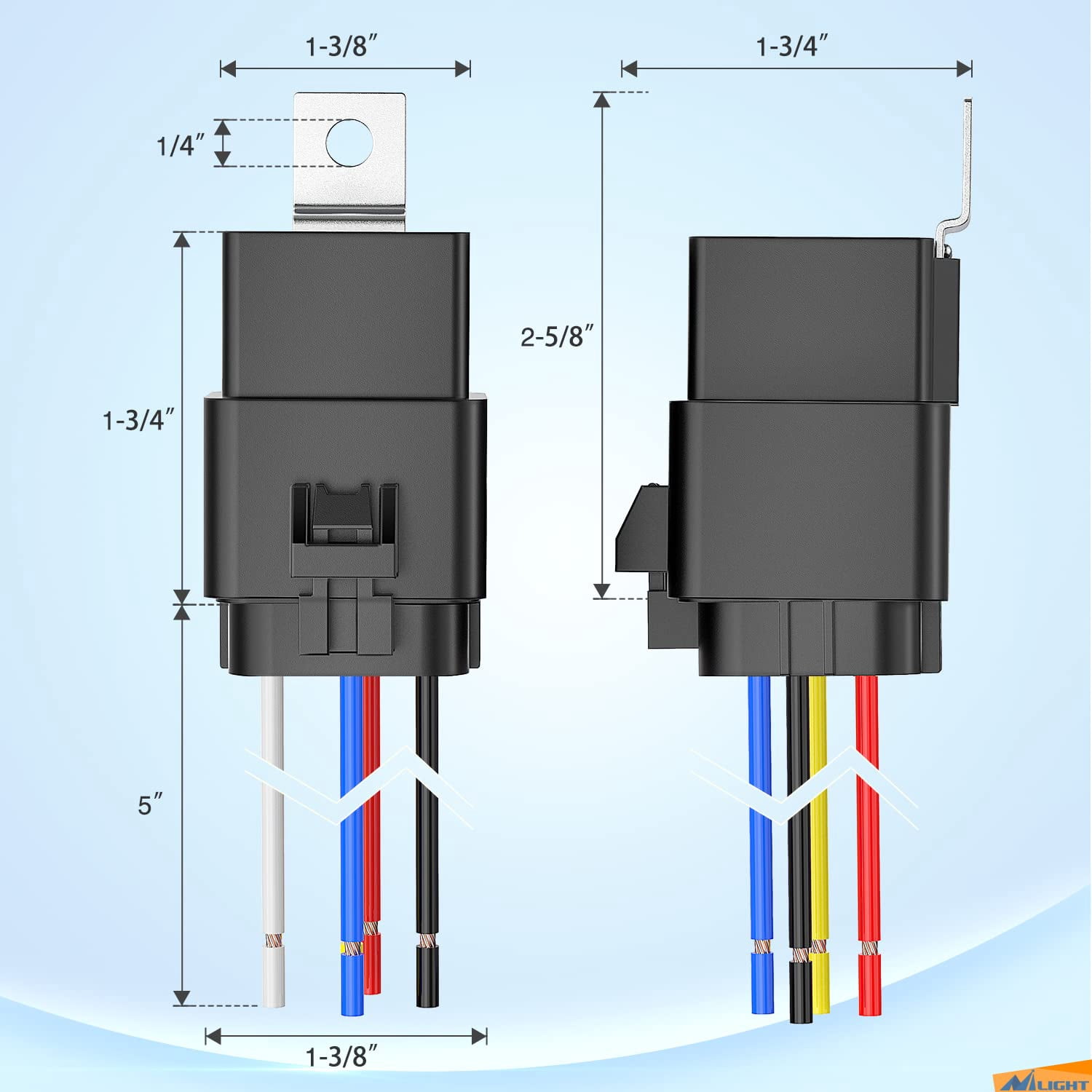

<p><strong>5 Pack Waterproof 40/30 AMP Heavy Duty 12 AWG Tinned Copper Wires 5-PIN SPDT 12V Automotive Relay and Harness Set</strong></p> <ul><li>Material：Copper</li><li>Item dimensions: 7.17 x 6.34 x 1.93 inches, 1.23 Pounds</li></ul> <p><strong>Waterproof relay harness 5 Pack SPDT Relay Socket Kit</strong></p> <ul><li>Nominal Coil Voltage: 12V DC</li><li>Coil Resistance: 80 Ω</li><li>Maximum Applied Voltage: 15.6V DC</li><li>Contact Ratings: NO 40A 14V DC</li><li>Contact Resistance: 100m MAX (at 6VDC 1AMP)</li><li>Max Switching Power: 560 Watts</li><li>12AWG Copper Wire: Pin 87a Yellow 12AWG Copper Wire: Pin 87 Blue 12AWG Copper Wire: Pin 30 Red 16AWG Copper Wire: Pin 85 Black 16AWG Copper Wire: Pin 86 White</li><li>Life Expectancy Machanical: 10,000,000 Operations Life Expectancy Electrical: 100,000 Operations (at 30 Operations/minute) Temperature Range: -30 ~ +80 degrees Celsius Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g Insulation Resistance: 100mΩ Min at 500V DC Package include: 5Pack SPDT Waterproof Relay and harness</li></ul> <p><strong>Features</strong></p> <ul><li>Weatherproof Relay The relays are tightly sealed with strong cap and seal ring, excellent performance of waterproof, dust proof and moisture proof, works well in any weather conditions.</li><li>Safe Connection Unique interlocking design provides simple and easy installation. The relay sockets come with color-labeled wires for accessories wiring, safe and convenient.</li><li>Reliable construction The real copper coil makes the voltage more stable and provides the loads more conductivity. Ensure superior quality and provide effective protection</li><li>5 Pin Relay More versatile than a 4 pin relay, 5 pin relays can be used as a single, normally open or normally closed relay, or in more complex setups, like a custom power lock and window build.</li></ul>

• 12 V DC automotive waterproof relays (max 14 V). Note: 12 V and 14 V are coil voltages, they are not the voltage that triggers the switch

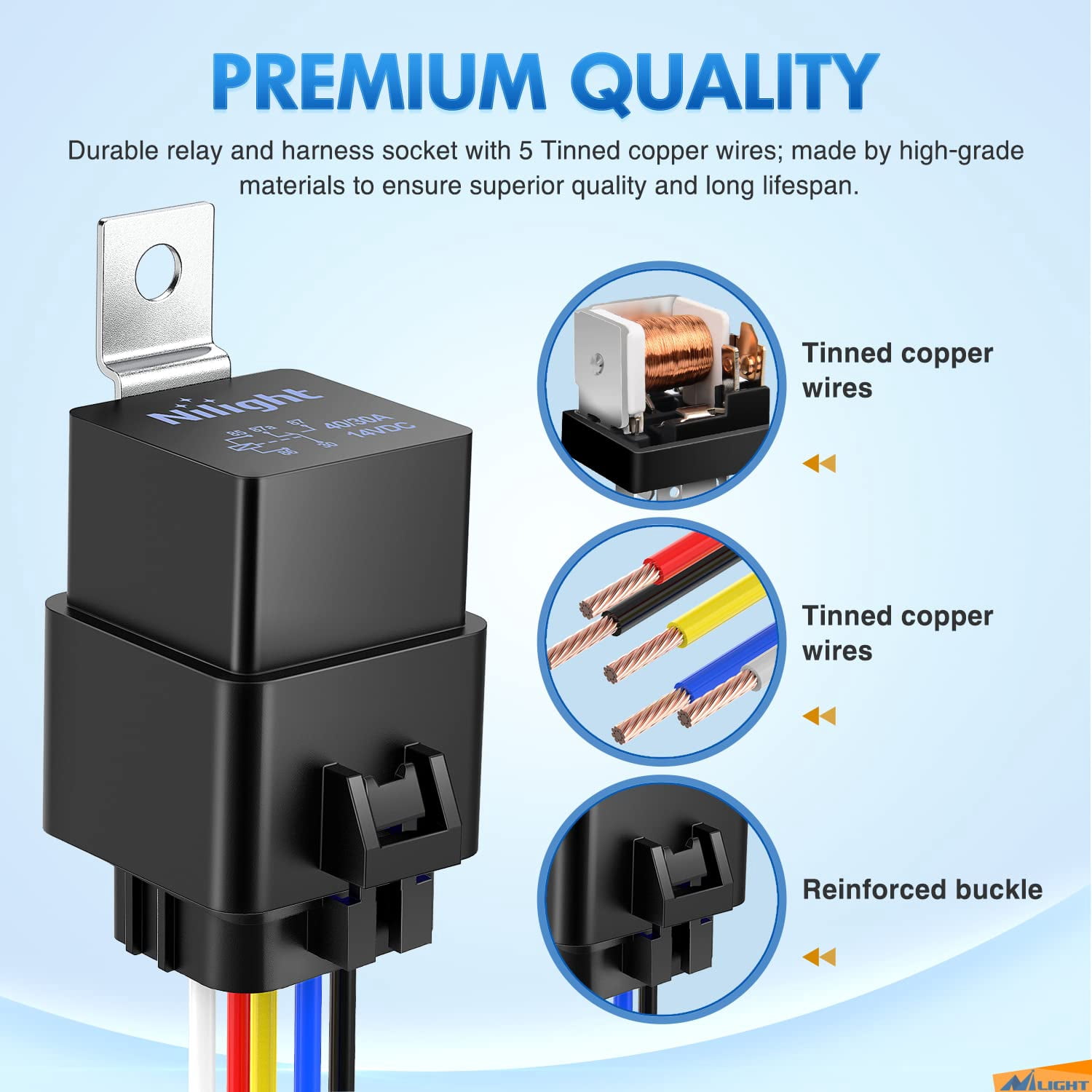

• Premium quality: durable relay and harness socket with 5 wires; made from high-grade materials to ensure superior quality and long lifespan

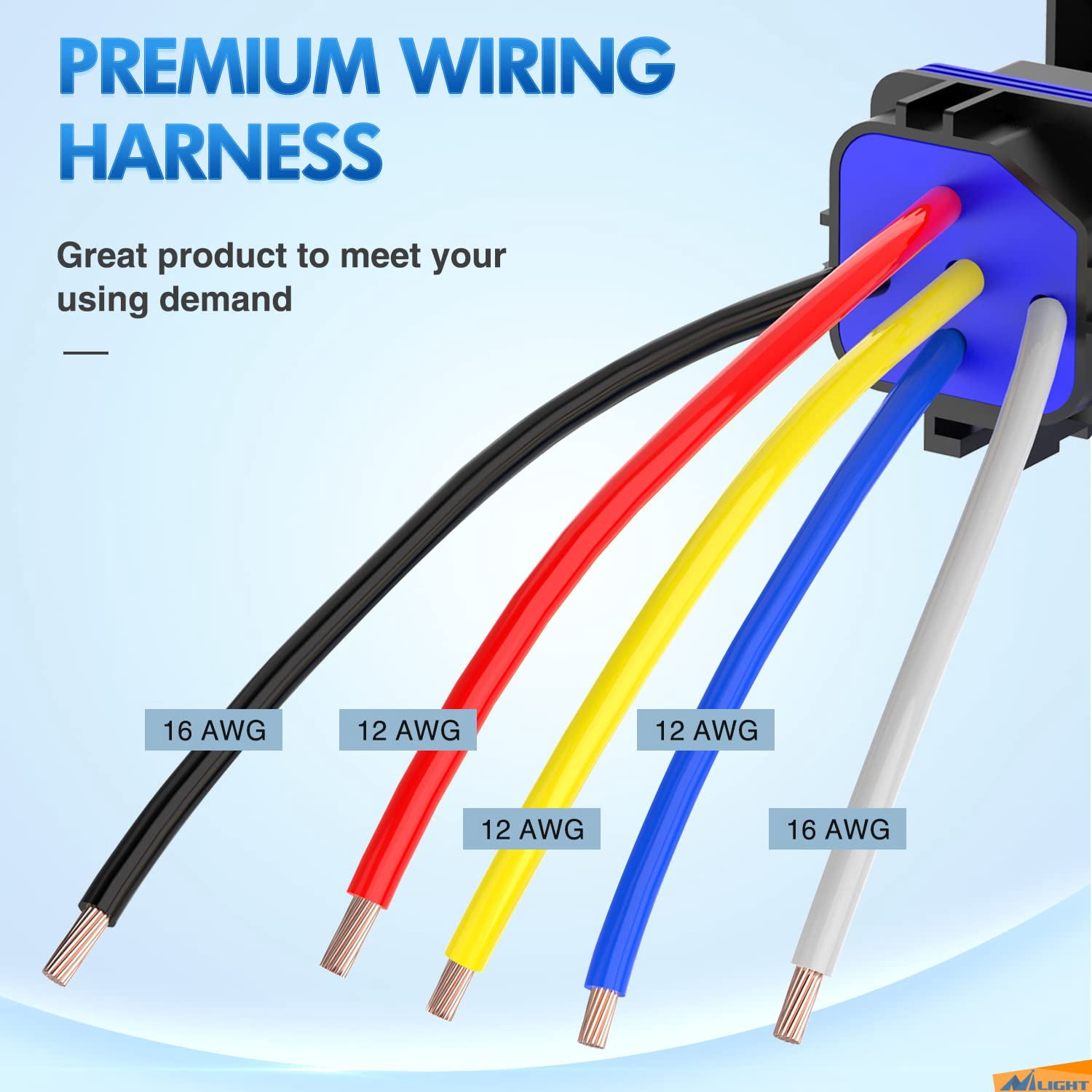

• Pre-wired Harness: Heavy duty 12/16 AWG wiring harness. Black - 16AWG Pin85, White - 16AWG Pin86, Red - 12AWG Pin30 Yellow - 12AWG Pin87a, and Blue - 12AWG Pin87

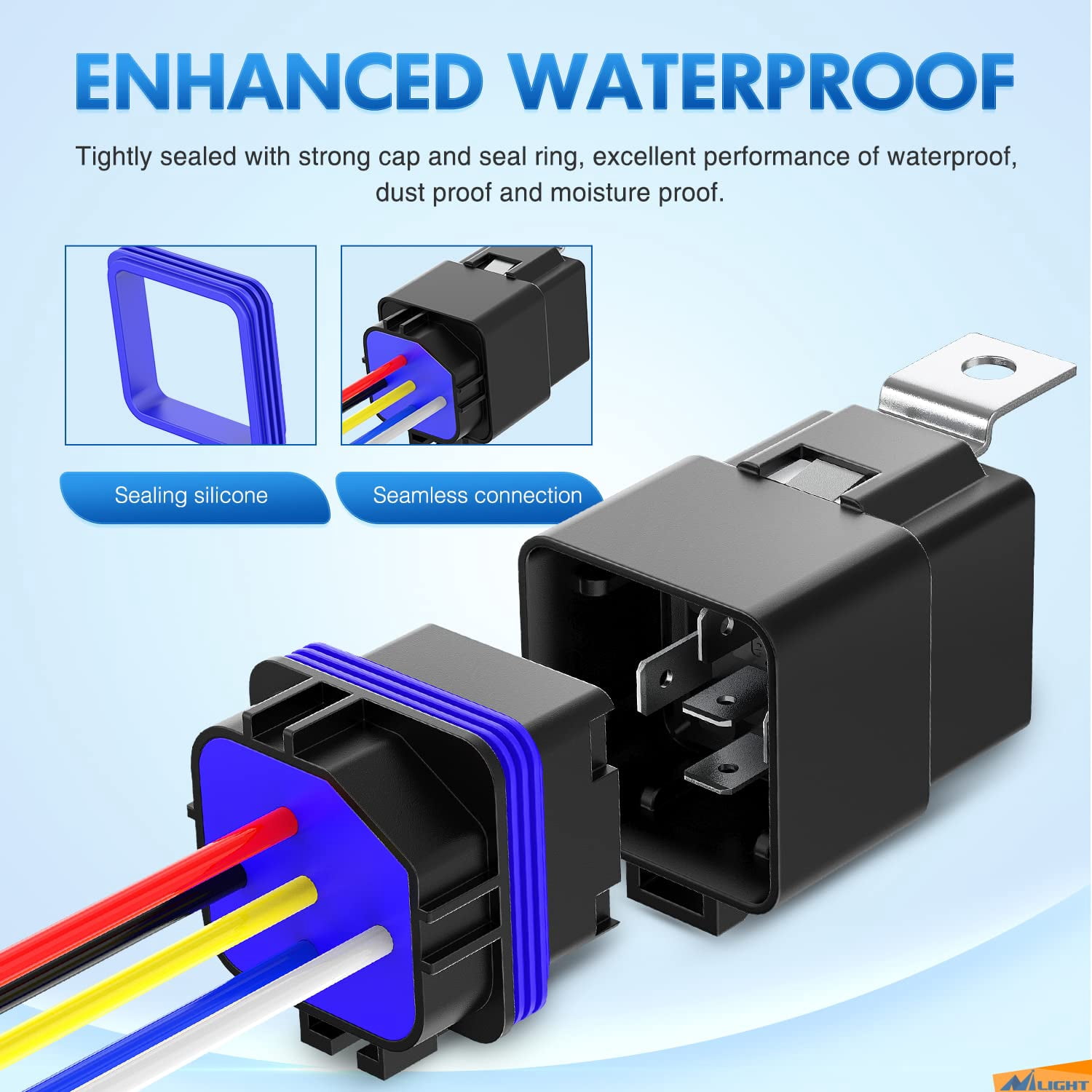

• Enhanced Waterproof - The 5-Pin relays are tightly sealed with strong cap and seal ring, excellent performance of waterproof, dust proof and moisture proof, works well in any weather conditions
• Package includes: 5 pack Waterproof Relay and Harness. 1x User manual
